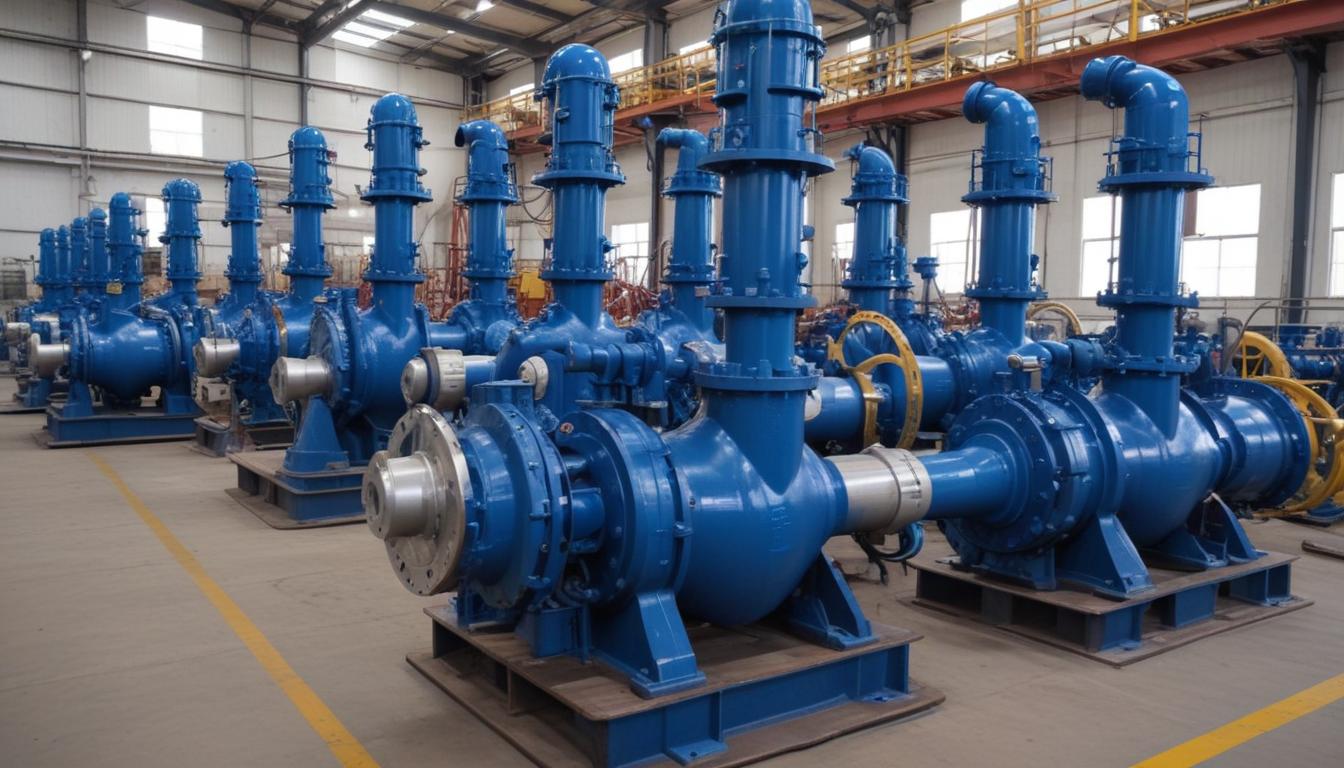

the role of pumps in oil and gas industry

The oil and gas industry utilizes a variety of pumps designed to handle specific applications and operational conditions. Among the predominant types are centrifugal pumps, positive displacement pumps, and submersible pumps, each offering unique advantages suited to different stages of production and processing.

Centrifugal Pumps are widely used due to their ability to handle large volumetric flows with relatively low pressure requirements. These pumps operate by imparting kinetic energy to the fluid via a rotating impeller, which then converts this energy into hydraulic energy. They are ideal for applications such as transporting crude oil, water injection in secondary recovery, and transferring refined products.

Positive Displacement Pumps deliver fluids by trapping a fixed amount and forcing it through the discharge port. This category includes several types:

  • Gear Pumps – Known for their simplicity and reliability, they are commonly used in hydraulic systems and for metering applications.
  • Diaphragm Pumps – Suitable for handling corrosive or abrasive fluids, often employed in transferring chemicals and sludge.
  • Piston Pumps – Provide high-pressure outputs, making them ideal for deep well applications and injection processes.

Submersible Pumps are designed to operate while submerged in the fluid, reducing the risk of vapor lock and increasing efficiency. They are frequently utilized in offshore platforms and subsea installations where reliable and continuous operation is essential.

In addition to these, specialized pumps like Progressing Cavity Pumps and Electric Submersible Pumps (ESP) play a critical role in enhancing production rates and managing challenging reservoirs. A comparative overview is provided below:

Type of Pump Key Features Common Applications
Centrifugal Pumps High flow rates, low to medium pressure Crude oil transportation, water injection
Positive Displacement Pumps Constant flow, high pressure Hydraulic systems, deep well injection
Submersible Pumps Operational underwater, reduced vapor lock Offshore platforms, subsea applications
Progressing Cavity Pumps Handles viscous fluids, flexible operation Heavy oil production, enhanced oil recovery
Electric Submersible Pumps (ESP) High efficiency, suitable for deep wells Artificial lift systems, deep reservoir extraction

Each of these pump types is selected based on specific operational requirements, fluid characteristics, and the stage of the production process. The choice of pump significantly impacts efficiency, reliability, and overall production performance in the oil and gas sector.

pump selection criteria

Selecting the appropriate pump for oil and gas operations involves a comprehensive evaluation of multiple factors to ensure optimal performance, reliability, and cost-effectiveness. The decision-making process must account for the specific applications, fluid characteristics, and operational conditions inherent to the oil and gas sector. Key criteria include:

  • Fluid Properties: Understanding the physical and chemical characteristics of the fluid is paramount. Factors such as viscosity, density, temperature, corrosiveness, and the presence of solids or abrasives influence the choice of pump type and materials. For instance, highly viscous fluids may require positive displacement pumps, while corrosive substances necessitate pumps made from compatible materials like stainless steel or specialized alloys.
  • Flow Rate and Pressure Requirements: Determining the required flow rate and the pressure at which the fluid must be delivered guides the selection between different pump types. Centrifugal pumps are suitable for high flow, low-pressure applications, whereas positive displacement pumps are better for applications requiring consistent flow and high pressure.
  • Operational Environment: The environment in which the pump will operate affects its design and durability. Submersible pumps are ideal for underwater or submerged applications, particularly in offshore platforms and subsea installations. Additionally, considerations such as temperature extremes, hazardous locations, and potential exposure to corrosive elements must be addressed to ensure pump longevity and safety.
  • Energy Efficiency: Energy consumption is a critical factor in pump selection, impacting both operational costs and environmental footprint. Pumps with higher efficiency ratings reduce energy usage, which is particularly important for continuous operations in the oil and gas industry. Features such as variable frequency drives (VFDs) can enhance energy efficiency by adjusting the pump speed to match demand.
  • Reliability and Maintenance: The reliability of oil and gas pumps is crucial to minimize downtime and maintain uninterrupted operations. Pumps with robust designs, proven track records, and easily accessible components facilitate regular maintenance and quick repairs. Maintenance requirements, including the frequency of servicing and availability of spare parts, should be evaluated to ensure long-term operational efficiency.
  • Compatibility with System Components: Ensuring that the selected pump integrates seamlessly with existing system components is essential for overall system performance. Compatibility considerations include flange sizes, connection types, control systems, and the ability to interface with monitoring and automation technologies.
  • Cost Considerations: Initial acquisition costs, installation expenses, and total cost of ownership must be weighed against the benefits provided by the pump. While higher upfront costs may be justified by increased efficiency and lower maintenance requirements, budget constraints often necessitate a balance between performance and affordability.
  • Regulatory and Safety Standards: Compliance with industry regulations and safety standards is non-negotiable. Pumps must meet the necessary certifications and adhere to guidelines governing emissions, pressure ratings, and environmental protection to ensure safe and legal operation.

To systematically evaluate these criteria, the following table outlines the primary factors and their implications for pump selection:

Selection Criterion Considerations Implications for Pump Type
Fluid Properties Viscosity, corrosiveness, presence of solids Positive displacement for viscous fluids; corrosion-resistant materials for aggressive fluids
Flow Rate & Pressure Required volumetric flow, discharge pressure Centrifugal for high flow, low pressure; positive displacement for high pressure
Operational Environment Temperature, submersion, hazardous locations Submersible pumps for underwater use; explosion-proof pumps for hazardous areas
Energy Efficiency Energy consumption, efficiency ratings High-efficiency centrifugal or ESP pumps; use of VFDs
Reliability & Maintenance Maintenance frequency, downtime tolerance Robust designs like diaphragm or piston pumps for lower maintenance
Compatibility System integration, control interfaces Modular pumps with standardized connections
Cost Initial and operational costs Cost-benefit analysis to balance price and performance
Regulatory Standards Compliance requirements Pumps meeting API, ISO, or other relevant standards

By meticulously assessing these selection criteria, stakeholders in the oil and gas industry can make informed decisions that enhance operational efficiency, ensure safety, and optimize overall performance. The right pump not only meets the immediate application needs but also adapts to evolving operational demands and technological advancements.

operational challenges

Operating oil and gas pumps presents a variety of complex challenges that must be effectively managed to ensure uninterrupted and efficient production. These challenges arise from the demanding environments and the diverse nature of the fluids being handled.

One significant challenge is managing the extreme environmental conditions often encountered in oil and gas operations. Pumps must operate reliably under high temperatures and pressures, which can lead to material degradation and mechanical stress. For instance, pumps used in deep-water offshore platforms are subjected to substantial pressure variations and corrosive seawater, necessitating the use of specialized materials and robust designs to withstand such conditions.

Handling viscous and abrasive fluids is another critical issue. Many oil and gas applications involve pumping heavy crude oils, slurries, or fluids containing solid particles. These substances can cause increased wear on pump components, such as seals, bearings, and impellers, leading to more frequent maintenance and potential downtime. Selection of appropriate pump types, such as positive displacement pumps, which are better suited for high-viscosity fluids, is essential to mitigate these effects.

Corrosion and chemical compatibility pose ongoing challenges, especially when dealing with sour gas or highly acidic fluids. The aggressive nature of these substances can deteriorate pump materials, resulting in leaks and failures. Utilizing corrosion-resistant materials like stainless steel, titanium, or specialized alloys, as well as implementing protective coatings, are necessary strategies to enhance pump longevity and reliability.

Mechanical reliability and maintenance are paramount in oil and gas operations where downtime can lead to significant financial losses. Pumps must maintain high reliability to ensure continuous operations. However, the harsh operating conditions and the demanding nature of the fluids can lead to increased wear and unexpected failures. Implementing predictive maintenance techniques, such as vibration analysis and thermal imaging, helps in early detection of potential issues, thereby reducing unplanned outages.

Energy efficiency is another critical operational challenge. Pumps are major consumers of energy in oil and gas facilities, and inefficiencies can lead to substantial operational costs. Optimizing pump performance through proper sizing, selecting high-efficiency pump types, and integrating variable frequency drives (VFDs) can significantly reduce energy consumption. Additionally, ensuring that pumps operate close to their designed performance curves minimizes energy waste and enhances overall system efficiency.

Integration with complex systems also presents challenges. Oil and gas operations often involve intricate piping networks and control systems. Ensuring that pumps integrate seamlessly with automation and monitoring systems is essential for maintaining optimal performance and enabling real-time adjustments based on operational demands. Compatibility with existing infrastructure and the ability to interface with advanced control technologies are key considerations in addressing this challenge.

The following table outlines some of the primary operational challenges faced by oil and gas pumps and the strategies employed to address them:

Operational Challenge Impact Mitigation Strategies
Extreme Temperatures and Pressures Material degradation, mechanical stress Use of specialized materials, robust pump designs
Viscous and Abrasive Fluids Increased wear, more frequent maintenance Select positive displacement types, use wear-resistant components
Corrosion and Chemical Compatibility Pump leaks, failures Employ corrosion-resistant materials, protective coatings
Mechanical Reliability and Maintenance Unplanned downtime, financial losses Implement predictive maintenance, use reliable pump types
Energy Efficiency High operational costs Optimize pump sizing, integrate VFDs, select high-efficiency pumps
System Integration Suboptimal performance, control issues Ensure compatibility with automation systems, use modular pump designs

Addressing these operational challenges requires a multifaceted approach that combines the right pump selection, advanced materials, regular maintenance, and the integration of modern technologies. By effectively managing these issues, the oil and gas industry can achieve higher efficiency, reduce costs, and maintain uninterrupted production even under the most demanding conditions.

maintenance and reliability

the role of pumps in oil and gas industryEnsuring the longevity and optimal performance of equipment is paramount in the oil and gas industry, where downtime can lead to significant financial losses and operational disruptions. Regular maintenance and a focus on reliability are essential practices for sustaining the efficiency and effectiveness of pumps within this sector.

Preventive Maintenance is a fundamental strategy employed to minimize the likelihood of unexpected pump failures. This approach involves scheduled inspections, servicing, and part replacements based on manufacturer recommendations and historical performance data. Key activities include:

  • Routine Inspections: Regularly checking for signs of wear, leaks, and other anomalies to address issues before they escalate.
  • Lubrication: Ensuring that all moving parts are adequately lubricated to reduce friction and prevent overheating.
  • Component Replacement: Timely replacement of wear-prone parts such as seals, bearings, and impellers to maintain pump integrity.
  • Calibration: Verifying and adjusting pump settings to ensure they operate within specified parameters.

Predictive Maintenance leverages advanced technologies to forecast potential failures before they occur, allowing for more targeted and efficient maintenance efforts. Techniques commonly used include:

  • Vibration Analysis: Monitoring vibrations to detect imbalances, misalignments, or bearing wear that could indicate impending failures.
  • Thermography: Using infrared imaging to identify overheating components, which may suggest electrical or mechanical issues.
  • Ultrasonic Testing: Detecting leaks and other anomalies through high-frequency sound waves that are beyond the range of human hearing.
  • Oil Analysis: Examining lubricant samples for contamination and wear particles, providing insights into the internal condition of the pump.

Implementing a comprehensive maintenance program not only extends the lifespan of oil and gas pumps but also enhances their reliability and performance. Establishing a well-structured maintenance schedule that incorporates both preventive and predictive strategies can lead to significant improvements in operational uptime and cost savings.

Reliability-Centered Maintenance (RCM) is an advanced methodology that prioritizes maintenance activities based on the criticality and failure modes of each pump. RCM involves:

  1. Functional Analysis: Identifying the essential functions of each pump and the potential ways these functions can fail.
  2. Failure Mode and Effects Analysis (FMEA): Assessing the impact of different failure modes on operations and determining the most effective maintenance actions.
  3. Maintenance Task Optimization: Developing maintenance tasks that specifically address the most critical failure modes to enhance overall system reliability.

By focusing on the most impactful aspects of pump performance, RCM ensures that maintenance resources are allocated efficiently, leading to enhanced system reliability and reduced operational costs.

To further support maintenance and reliability efforts, the following table outlines key maintenance practices and their benefits:

Maintenance Practice Description Benefits
Scheduled Downtime Planned periods for maintenance activities to prevent unexpected failures. Reduces the risk of unplanned outages and allows for better resource planning.
Condition Monitoring Continuous or periodic monitoring of pump conditions using sensors and diagnostics. Enables early detection of issues, minimizing downtime and repair costs.
Spare Parts Management Maintaining an inventory of critical spare parts for quick replacements. Ensures rapid response to pump failures, reducing repair time.
Training and Documentation Providing regular training for maintenance personnel and keeping detailed records. Enhances the effectiveness of maintenance activities and facilitates knowledge transfer.

Reliability metrics are essential for assessing the effectiveness of maintenance programs and identifying areas for improvement. Common metrics include:

  • Mean Time Between Failures (MTBF): Measures the average time between pump failures, indicating overall reliability.
  • Mean Time to Repair (MTTR): Calculates the average time required to repair a pump, reflecting maintenance efficiency.
  • Overall Equipment Effectiveness (OEE): Combines availability, performance, and quality metrics to provide a comprehensive view of pump efficiency.

Regularly tracking and analyzing these metrics allows organizations to make data-driven decisions, optimizing maintenance strategies and enhancing pump reliability.

Incorporating reliability engineering principles into maintenance programs helps in identifying potential failure points and implementing design improvements. Collaborating with pump manufacturers to understand the specific failure modes and recommended maintenance practices can further enhance reliability.

Investing in advanced maintenance technologies and adopting a proactive maintenance culture are critical steps toward achieving high reliability and sustained performance of pumps in the oil and gas industry. By prioritizing maintenance and reliability, companies can ensure that their operations remain efficient, safe, and cost-effective.

future trends in pumping technology

The advancement of pumping technology is pivotal to addressing the evolving demands of the oil and gas industry. Emerging innovations are focused on enhancing efficiency, reliability, and sustainability, while also integrating with digital transformation initiatives. Key future trends include:

  • Smart Pumping Systems: Integration of Internet of Things (IoT) technologies enables real-time monitoring and control of pumps. Sensors collect data on parameters such as flow rate, pressure, and temperature, which are then analyzed to optimize performance and predict maintenance needs.
  • Advanced Materials: Development of new materials resistant to corrosion, wear, and extreme temperatures extends the lifespan of pumps. Innovations in composite materials and advanced alloys allow pumps to operate reliably in more challenging environments.
  • Energy Efficiency Improvements: Focus on reducing energy consumption through the design of high-efficiency motors, variable frequency drives (VFDs), and optimized pump geometries. Enhanced energy efficiency not only lowers operational costs but also reduces the environmental footprint.
  • Automation and Artificial Intelligence: Implementation of AI and machine learning algorithms to analyze operational data can lead to smarter decision-making processes. Automated control systems can adjust pump operations in real-time to match changing conditions, improving overall system performance.
  • Modular and Scalable Designs: Future pump designs emphasize modularity and scalability, allowing for easier upgrades and customization based on specific applications. This flexibility facilitates quicker deployment and adaptation to varying operational requirements.
  • Enhanced Reliability and Predictive Maintenance: Advanced diagnostic tools and predictive maintenance strategies minimize downtime by identifying potential issues before they result in failures. Techniques such as predictive analytics and condition-based monitoring are becoming standard practices.
  • Environmental Sustainability: Development of pumps that utilize environmentally friendly materials and processes. Technologies aimed at reducing emissions, minimizing waste, and improving the overall sustainability of pumping operations are gaining prominence.
  • Integration with Renewable Energy Sources: As the industry shifts towards renewable energy, pumps are being designed to operate efficiently with alternative power sources such as solar and wind energy. This integration supports the transition to more sustainable energy practices within oil and gas operations.

The following table highlights these trends and their implications for the oil and gas sector:

Future Trend Description Implications for Oil and Gas Pumps
Smart Pumping Systems Integration of IoT for real-time monitoring and control Improved operational efficiency, reduced downtime, proactive maintenance
Advanced Materials Use of corrosion-resistant and high-strength materials Increased pump lifespan, enhanced reliability in harsh environments
Energy Efficiency Improvements Design enhancements for reduced energy consumption Lower operational costs, reduced environmental impact
Automation and AI Utilization of AI for data analysis and automated control Optimized pump performance, intelligent operational adjustments
Modular and Scalable Designs Flexible pump architectures for easy upgrades Customization for specific applications, faster deployment
Enhanced Reliability and Predictive Maintenance Use of predictive analytics and condition monitoring Minimized downtime, cost-effective maintenance planning
Environmental Sustainability Development of eco-friendly pump technologies Compliance with environmental regulations, improved sustainability
Integration with Renewable Energy Designing pumps compatible with solar and wind power Support for sustainable energy initiatives, reduced reliance on fossil fuels

Furthermore, the adoption of digital twins—virtual replicas of physical pumps—enables simulation and optimization of pump performance under various scenarios without interrupting actual operations. This technology facilitates better design, testing, and maintenance planning, ensuring that pumps are always operating at peak efficiency.

Another significant trend is the move towards additive manufacturing (3D printing) for pump components. This allows for rapid prototyping, customization, and production of complex parts that are difficult to manufacture using traditional methods. Additive manufacturing not only accelerates the development cycle but also reduces material waste and production costs.

Wireless communication technologies are also being integrated into pump systems, enabling more flexible installation and easier maintenance access. Remote diagnostics and control become more feasible, allowing operators to manage pumps from centralized locations and respond swiftly to any issues that arise.

In summary, the future of pumping technology in the oil and gas industry is characterized by increased automation, smarter systems, enhanced materials, and a strong emphasis on sustainability and energy efficiency. These advancements promise to deliver pumps that are not only more reliable and efficient but also better suited to meet the dynamic challenges of the energy sector.
