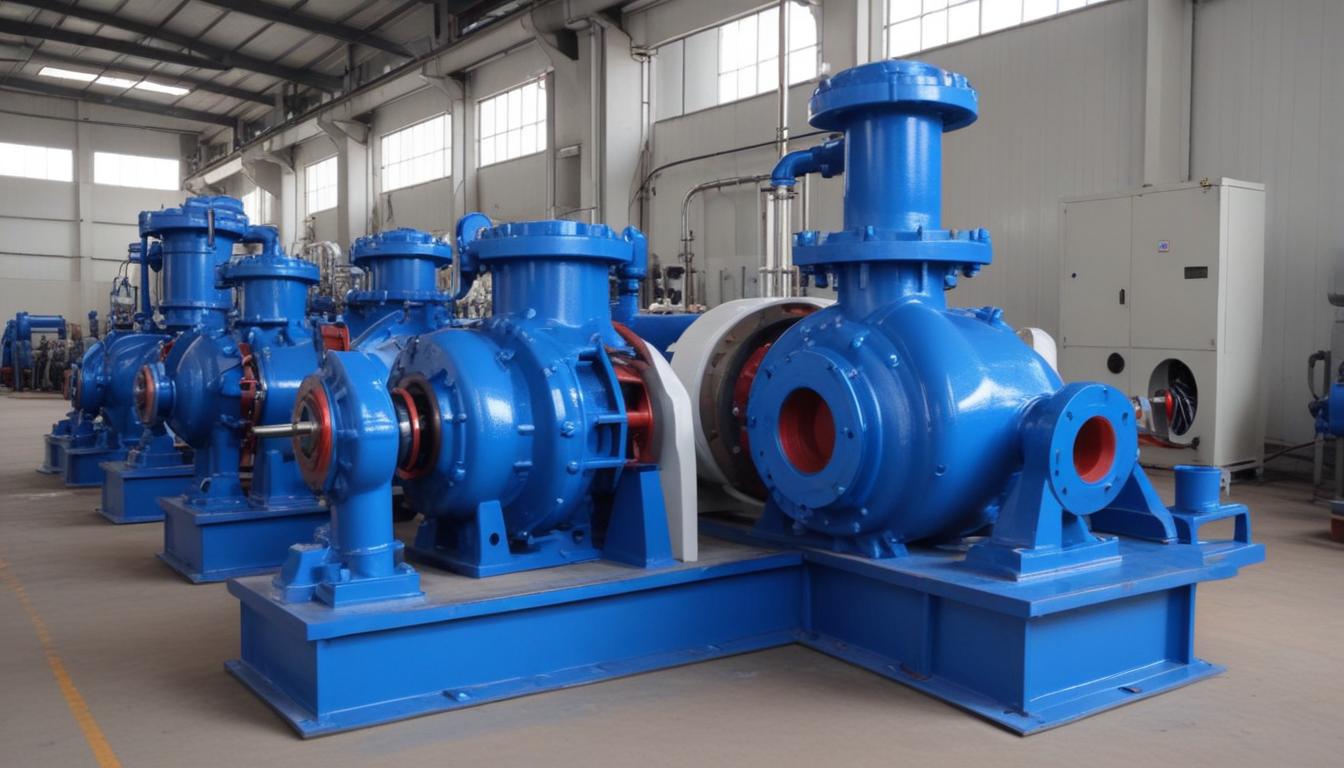

pumps used in chemical processing

Centrifugal pumps are among the most commonly used chemical pumps due to their versatility and ability to handle a wide range of fluid viscosities. They operate by converting rotational kinetic energy into hydrodynamic energy, allowing for continuous flow in various applications. Positive displacement pumps, another major category, include types such as gear, diaphragm, and peristaltic pumps. These are ideal for applications requiring precise flow control and the handling of highly viscous or shear-sensitive fluids.

Gear pumps are a subtype of positive displacement pumps that utilize interlocking gears to move fluid. They are particularly effective in applications where consistent and accurate flow rates are essential. Diaphragm pumps use a flexible diaphragm driven by a piston or other mechanical means to displace fluid, making them suitable for corrosive or abrasive chemicals. Peristaltic pumps function by compressing and releasing a hose or tube, which propels the fluid forward, offering excellent contamination control and ease of maintenance.

Screw pumps, which are also positive displacement pumps, employ one or more screws to transport fluids along the pump’s axis. They are favored in applications requiring the handling of high-viscosity liquids and where smooth, pulseless flow is necessary. Magnetic drive pumps are another specialized type, featuring a sealed magnetic coupling that minimizes the risk of leaks, making them ideal for hazardous or toxic chemicals.

For applications involving corrosive substances, pumps constructed from materials such as stainless steel, Hastelloy, or PTFE are often selected to ensure durability and longevity. Additionally, vacuum pumps play a crucial role in processes requiring the removal of air or other gases from a system, aiding in reactions and material handling.

The selection of the appropriate pump type is critical in chemical processing, as it directly impacts the efficiency, safety, and reliability of the entire operation. Understanding the various types of chemical pumps and their specific functionalities allows engineers to design and maintain systems that meet the demanding requirements of chemical applications.

Pump Type	Key Features	Typical Applications
Centrifugal Pumps	High flow rates, continuous operation	Water treatment, large-scale chemical processing
Gear Pumps	Precise flow control, handling of viscous fluids	Petrochemicals, lubrication systems
Diaphragm Pumps	Corrosion resistance, handling abrasive fluids	Chemical dosing, slurry handling
Peristaltic Pumps	Contamination-free operation, easy maintenance	Pharmaceuticals, food processing
Screw Pumps	Smooth, pulseless flow, suitable for high-viscosity liquids	Heavy oil transfer, polymer processing
Magnetic Drive Pumps	Leak-free operation, handling hazardous chemicals	Toxic substance transfer, vacuum applications

• Magnetic Drive Pumps: Utilize a magnetic coupling to prevent leaks, ideal for handling hazardous or toxic chemicals.
• Vacuum Pumps: Essential for processes that require the removal of gases or air from a system to create a controlled environment.
• Screw Pumps: Provide a smooth and steady flow, suitable for high-viscosity and shear-sensitive applications.

Choosing the right type of pump is essential for optimizing the efficiency and safety of chemical processing operations. Each pump type offers unique advantages tailored to specific applications, ensuring that processes run smoothly and effectively.

selection criteria

Selecting the appropriate pump for chemical processing requires a comprehensive evaluation of several critical factors to ensure optimal performance, reliability, and safety. Key considerations include:

• Flow Rate and Capacity: Determining the required flow rate is fundamental in selecting a pump that can handle the necessary volume of fluid within the desired timeframe.
• Pressure Requirements: Assessing the system’s pressure needs ensures that the pump can maintain adequate pressure levels for the process.
• Temperature Range: The operating temperature of the fluids dictates the materials and pump types suitable for the application.
• Chemical Compatibility: Ensuring that the pump materials are compatible with the chemicals being processed prevents corrosion and extends pump life.
• Fluid Viscosity: The viscosity of the fluid affects the type of pump needed; high-viscosity fluids may require positive displacement pumps, while low-viscosity fluids can be handled by centrifugal pumps.
• Viscosity and Shear Sensitivity: Some applications require pumps that can handle shear-sensitive fluids without degrading their properties.
• Reliability and Maintenance: Considering the ease of maintenance and the reliability of the pump is essential for minimizing downtime.
• Energy Efficiency: Selecting pumps with high energy efficiency can reduce operational costs and environmental impact.
• Cost: Evaluating the total cost of ownership, including initial investment, maintenance, and operational costs, aids in selecting a cost-effective pump solution.

To facilitate the selection process, the following table outlines how different pump types align with these criteria:

Selection Criteria	Relevant Pump Types	Considerations
Flow Rate	Centrifugal Pumps	Best suited for high flow rates and continuous operation.
Pressure	Positive Displacement Pumps	Capable of achieving higher pressures, ideal for applications requiring precise pressure control.
Chemical Compatibility	Magnetic Drive Pumps, Diaphragm Pumps	Use materials like PTFE or Hastelloy to resist corrosive chemicals.
Viscosity	Screw Pumps, Gear Pumps	Effective for handling high-viscosity and shear-sensitive fluids.
Temperature	All Pump Types	Pumps must be rated for the specific temperature ranges of the application.
Maintenance	Centrifugal Pumps	Typically require less maintenance due to fewer moving parts.
Energy Efficiency	Variable Frequency Drive (VFD) Centrifugal Pumps	Adjustable speed drives can enhance energy efficiency based on demand.
Cost	Peristaltic Pumps, Diaphragm Pumps	Initial and operational costs vary; selecting based on long-term cost-effectiveness.

Furthermore, the following factors should be prioritized based on the specific applications within chemical processing:

1. Process Requirements: Understanding the specific needs of the chemical process, including flow continuity, surge handling, and pulsing, is essential.
2. System Integration: Ensuring the pump can be seamlessly integrated with existing systems, including piping, control systems, and instrumentation.
3. Regulatory Compliance: Adhering to industry standards and regulations related to safety, environmental impact, and operational guidelines.
4. Future Scalability: Selecting pumps that can accommodate potential increases in production or changes in process requirements.

By meticulously evaluating these selection criteria, engineers can choose the most suitable chemical pumps, ensuring that the chosen pump type aligns with the operational demands and enhances the overall efficiency and safety of the chemical processing system.

materials of construction

The selection of appropriate materials is paramount in the construction of chemical pumps to ensure longevity, reliability, and safety in various applications. Chemical pumps are often exposed to harsh environments, including corrosive substances, extreme temperatures, and abrasive fluids. Therefore, the materials chosen must exhibit excellent chemical resistance, mechanical strength, and durability.

Common Materials Used in Chemical Pumps:

• Stainless Steel: Widely used due to its excellent corrosion resistance and mechanical properties. Grades such as 316L and 304 are common, with 316L offering enhanced resistance to chloride environments.
• Hastelloy: A high-performance alloy known for its superior resistance to a broad range of chemicals, including strong acids and chlorides. Ideal for highly corrosive applications.
• PTFE (Polytetrafluoroethylene): Offers outstanding chemical resistance and is used in seals, gaskets, and linings. PTFE is suitable for handling aggressive chemicals and provides a non-stick surface.
• Viton: A type of fluoroelastomer used for seals and gaskets, Viton withstands a wide range of temperatures and chemical exposures, making it suitable for demanding environments.
• Ceramics: Employed in applications involving abrasive fluids. Ceramic components resist wear and maintain integrity under high-stress conditions.
• Carbon Steel: Utilized in less corrosive environments where high strength is required at a lower cost. Appropriate for applications involving non-aggressive fluids.

Factors Influencing Material Selection:

1. Chemical Compatibility: Ensuring that the pump materials are resistant to the specific chemicals being processed to prevent corrosion and degradation.
2. Temperature Resistance: Materials must maintain their structural integrity and performance at the operating temperatures of the application.
3. Pressure Handling: The chosen materials should withstand the operating pressures without deforming or failing.
4. Abrasion Resistance: For applications involving abrasive fluids, materials that resist wear and erosion are essential to prolong pump life.
5. Mechanical Strength: Materials must possess adequate strength to handle the mechanical stresses encountered during pump operation.
6. Cost Considerations: Balancing material performance with budget constraints to achieve cost-effective solutions without compromising on quality.

Material Selection for Specific Pump Types:

Pump Type	Common Construction Materials	Typical Applications
Centrifugal Pumps	Stainless Steel, Carbon Steel, PTFE-lined components	Water treatment, large-scale chemical processing
Gear Pumps	Hastelloy, Stainless Steel, PTFE for seals	Petrochemicals, lubrication systems
Diaphragm Pumps	PTFE, Hastelloy, Viton for diaphragms and seals	Chemical dosing, slurry handling
Peristaltic Pumps	Stainless Steel, PTFE tubing	Pharmaceuticals, food processing
Screw Pumps	Stainless Steel, Ceramic components	Heavy oil transfer, polymer processing
Magnetic Drive Pumps	Stainless Steel, PTFE-lined housings	Toxic substance transfer, vacuum applications

Advanced Materials and Coatings: In addition to traditional materials, advanced coatings and composite materials are increasingly being utilized to enhance the performance and lifespan of chemical pumps. For instance, coatings such as epoxy or rubber linings can provide additional protection against specific chemical exposures. Composite materials, which combine the strengths of multiple materials, offer tailored properties that can meet the unique demands of specialized applications.

Considerations for Future Material Innovations: As the chemical processing industry evolves, there is a continuous demand for materials that offer better performance, lower maintenance, and enhanced sustainability. Research into nanomaterials and smart materials holds promise for developing pumps that can self-diagnose issues or adapt to changing process conditions in real-time. Additionally, environmentally friendly materials that reduce the ecological footprint of chemical pump operations are gaining attention.

By carefully selecting materials based on the specific requirements of the application, engineers can ensure that chemical pumps operate efficiently, safely, and reliably over their intended lifespan. The interplay between material properties and pump performance is a critical aspect of pump design and selection in the chemical processing industry.

maintenance and troubleshooting

Regular maintenance is essential to ensure the longevity, efficiency, and reliable performance of chemical pumps. Implementing a comprehensive maintenance program can prevent unexpected downtime, extend the life of pump components, and maintain optimal operation conditions. Effective maintenance strategies encompass both preventive measures and prompt troubleshooting to address issues as they arise.

Preventive Maintenance Practices:

• Scheduled Inspections: Conduct routine inspections to identify signs of wear, corrosion, or damage. Regularly check critical components such as seals, gaskets, bearings, and impellers to ensure they remain in good condition.
• Lubrication: Maintain proper lubrication of moving parts to reduce friction and prevent premature wear. Use manufacturer-recommended lubricants and adhere to specified lubrication intervals.
• Alignment and Coupling: Ensure that pump and motor shafts are properly aligned to prevent undue stress on bearings and couplings. Misalignment can lead to increased vibration and component failure.
• Seal Integrity: Inspect mechanical seals and ensure they are functioning correctly. Replace seals that show signs of wear or leakage to prevent chemical leaks and maintain system integrity.
• Cleaning: Keep the pump and surrounding areas clean to avoid contamination and buildup of residues that can impair pump performance. Cleanliness is particularly crucial in applications handling abrasive or corrosive fluids.
• Performance Monitoring: Regularly monitor pump performance metrics such as flow rate, pressure, and temperature. Deviations from normal operating conditions can indicate potential issues that need to be addressed.

Troubleshooting Common Issues:

When issues arise, a systematic approach to troubleshooting can quickly identify and resolve problems, minimizing downtime and maintaining process continuity. Below is a table outlining common pump issues, potential causes, and recommended solutions:

Issue	Possible Causes	Recommended Solutions
Leaking Seals	Worn or damaged seals, improper installation, excessive pressure	Replace seals, ensure correct installation procedures, verify operating pressures are within design limits.
Reduced Flow Rate	Clogged impeller, air ingress, worn components	Clean or replace impeller, check for and eliminate air leaks, inspect and replace worn parts as needed.
Excessive Vibration	Misalignment, unbalanced impeller, loose mounts	Realign shafts, balance impeller, secure mounting fixtures.
Overheating	Insufficient lubrication, blocked cooling passages, high ambient temperatures	Lubricate moving parts appropriately, clear any obstructions in cooling systems, ensure adequate ventilation.
Unusual Noise	Worn bearings, cavitation, foreign objects in the pump	Inspect and replace bearings, adjust operating conditions to prevent cavitation, remove any foreign debris.
Frequent Tripping	Electrical issues, overload conditions, motor faults	Check electrical connections, ensure pump is not operating beyond its capacity, inspect and repair motor as necessary.

Advanced Troubleshooting Techniques:

For more complex issues, advanced diagnostic tools and techniques can enhance troubleshooting effectiveness:

1. Vibration Analysis: Utilize vibration monitoring equipment to detect imbalances, misalignments, or bearing failures early. Analyzing vibration patterns can provide insights into underlying mechanical issues.
2. Thermography: Infrared cameras can identify hotspots within the pump system, indicating areas of excessive friction, electrical faults, or inadequate cooling.
3. Flow and Pressure Monitoring: Implement continuous monitoring systems to track real-time flow and pressure data. Automated alerts can notify maintenance personnel of anomalies that may require immediate attention.
4. Ultrasonic Testing: Use ultrasonic sensors to detect leaks, electrical discharges, or other high-frequency anomalies that are not visible to the naked eye.

Documentation and Record-Keeping:

Maintaining detailed records of all maintenance activities, inspections, and repairs is crucial for effective pump management. Proper documentation helps in tracking the history of pump performance, identifying recurring issues, and planning future maintenance tasks. Key elements to document include:

• Dates and types of maintenance performed
• Replacement parts and their specifications
• Observed issues and corrective actions taken
• Performance metrics before and after maintenance
• Recommendations for future maintenance or upgrades

Training and Personnel:

Ensuring that maintenance personnel are well-trained and knowledgeable about the specific types of chemical pumps and their operational requirements is essential. Regular training programs should cover:

• Proper maintenance procedures and safety protocols
• Identification and diagnosis of common pump issues
• Use of diagnostic and maintenance tools
• Understanding of chemical compatibility and material considerations

By adhering to structured maintenance and troubleshooting practices, facilities can achieve higher reliability and efficiency in their chemical processing operations. Proactive maintenance not only minimizes the risk of unexpected failures but also optimizes pump performance, ensuring that chemical pumps continue to meet the demanding requirements of various applications effectively.

safety considerations

Ensuring the safety of chemical processing operations heavily relies on the proper implementation of safety measures related to pump usage. Chemical pumps often handle hazardous, corrosive, or volatile substances, making it imperative to adopt comprehensive safety strategies to protect personnel, equipment, and the environment. Key safety considerations include:

Hazard Identification and Risk Assessment

Before selecting and installing pumps, it is essential to conduct thorough hazard identification and risk assessments. This process involves:

• Chemical Compatibility: Understanding the properties of the chemicals being handled to prevent adverse reactions or material degradation.
• Environmental Conditions: Assessing factors such as temperature, pressure, and potential for spills or leaks.
• Operational Risks: Identifying potential failure modes, such as over-pressurization, overheating, or mechanical breakdowns.

Proper Installation and Grounding

Correct installation is fundamental to pump safety. Ensuring that pumps are installed according to manufacturer specifications and industry standards includes:

• Securing Equipment: Properly mounting pumps to reduce vibrations and prevent movement that could lead to leaks or mechanical failures.
• Electrical Grounding: Ensuring that electrical components are correctly grounded to prevent electrical hazards, especially in environments with flammable chemicals.
• Piping Configuration: Designing piping systems to minimize stress on pump connections and facilitate maintenance.

Pressure and Temperature Control

Maintaining appropriate pressure and temperature levels is crucial to prevent accidents and ensure efficient pump operation. Measures include:

• Pressure Relief Valves: Installing pressure relief devices to protect against over-pressurization.
• Temperature Monitoring: Utilizing sensors and control systems to continuously monitor and regulate fluid temperatures.
• Insulation and Cooling: Applying insulation to pipes and equipment to maintain desired temperatures and prevent heat loss or gain.

Emergency Shutdown Systems

Incorporating robust emergency shutdown (ESD) systems ensures that pumps can be quickly and safely halted in the event of an emergency. Key components include:

• Automatic Shutoff: Systems that automatically stop pump operation when critical parameters are exceeded.
• Manual Controls: Easily accessible emergency stop buttons for personnel to initiate shutdowns when necessary.
• Alarm Systems: Audible and visual alarms that alert operators to abnormal conditions requiring immediate attention.

Leak Detection and Management

Effective leak detection systems are vital for early identification and mitigation of leaks, minimizing potential hazards. Strategies include:

• Leak Sensors: Installing sensors that detect the presence of chemicals outside the pump system.
• Regular Inspections: Conducting routine checks for signs of leaks, such as stains, odors, or unusual equipment behavior.
• Containment Measures: Designing pump installations with secondary containment to capture and contain any accidental releases.

Personal Protective Equipment (PPE)

Providing appropriate PPE to all personnel involved in the operation and maintenance of chemical pumps is essential for their safety. Required PPE may include:

• Gloves: Protecting hands from chemical exposure and abrasions.
• Safety Glasses or Goggles: Shielding eyes from splashes and spray.
• Protective Clothing: Utilizing suits or aprons to guard against chemical contact.
• Respiratory Protection: Providing masks or respirators in environments with hazardous vapors.

Training and Procedures

Comprehensive training programs ensure that all personnel are knowledgeable about pump operations, safety protocols, and emergency response procedures. Effective training includes:

• Operational Training: Educating staff on the correct operation and handling of chemical pumps.
• Safety Protocols: Instruction on safety measures, including the use of PPE and understanding safety data sheets (SDS) for chemicals.
• Emergency Response: Drills and procedures for responding to pump failures, leaks, or other emergencies.

Regulatory Compliance

Adhering to relevant safety regulations and industry standards is mandatory to ensure safe pump operations. This involves:

• OSHA Standards: Complying with Occupational Safety and Health Administration regulations related to chemical handling and equipment safety.
• API Standards: Following standards set by the American Petroleum Institute for pump design and installation.
• Local Codes: Meeting local governmental requirements for industrial safety and environmental protection.

Safety Practices by Pump Type

Different types of chemical pumps present unique safety considerations based on their design and application. The following table outlines key safety practices tailored to various pump types:

Pump Type	Safety Considerations	Recommended Practices
Centrifugal Pumps	High-speed operation can lead to mechanical failures and leaks.	Ensure proper alignment, regular inspection of bearings and seals, and install vibration monitoring systems.
Positive Displacement Pumps	Pressure spikes and backflow risks.	Use pressure relief valves, maintain backflow prevention devices, and monitor pressure levels continuously.
Diaphragm Pumps	Sensitive to diaphragms integrity and chemical compatibility.	Regularly inspect diaphragms for wear, ensure compatibility with handled chemicals, and replace diaphragms as needed.
Magnetic Drive Pumps	Dependence on magnetic seals to prevent leaks.	Inspect magnetic couplings regularly, monitor for signs of seal degradation, and ensure proper alignment of magnetic components.
Peristaltic Pumps	Potential for tubing wear and contamination.	Regularly replace tubing, ensure pumps are clean and free from contaminants, and monitor flow rates for consistency.
Screw Pumps	Handling high-viscosity fluids can cause overheating.	Implement adequate cooling systems, monitor temperature levels, and maintain proper lubrication of moving parts.

Emergency Response Planning

Developing and maintaining an effective emergency response plan is critical for mitigating the impact of pump-related incidents. Key elements of an emergency response plan include:

• Incident Identification: Clearly defining what constitutes an emergency and establishing criteria for response activation.
• Response Procedures: Detailed steps for addressing various types of emergencies, including leak containment, equipment shutdown, and evacuation protocols.
• Communication Protocols: Ensuring that all relevant personnel are informed promptly and know their roles during an emergency.
• Resource Allocation: Providing necessary tools, equipment, and materials to handle emergencies effectively.
• Post-Incident Review: Conducting evaluations after an incident to identify lessons learned and improve future response strategies.

Implementing these safety considerations not only protects workers and the environment but also ensures the integrity and reliability of chemical processing operations. By prioritizing safety in the selection, installation, operation, and maintenance of chemical pumps, facilities can achieve secure and efficient processing environments.
